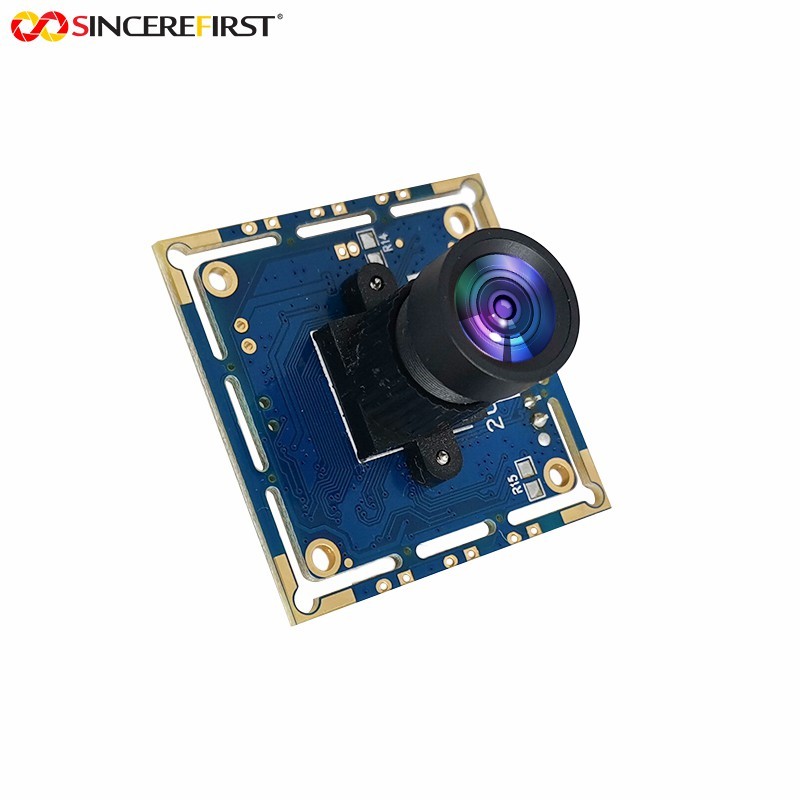

30 fps Micro 5mp Camera Module MI5100 Image Sensor for Drone

Brand Name : SINCERE FIRST

Model Number : SF5A00N

Certification : CE, FCC, RoHS, REACH, ISO

Place of Origin : Guangdong , China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Sensor Model : MI5100

Module Size : 38X38mm

Sensor Size : 1/2.5"

Pixel Size : 2.2μm X 2.2μm

Temperature(Operation) : -20°C to 70°C

Temperature (Stable Image) : 0°C to 50°C

Assembly Technique : SMT(ROSH)

Object Distance : 1CM~∞

Interface : USB2.0

Drive-free agreement : Windows XP/7/8/10 Standard UVC protocol camera

Contact Now

Micro 5mp USB Camera Module MI5100 Image Sensor In Drone Camera

Specificaitons

Sensor 1/2.5’’ MI5100
Resolution 5 Mega Pixel
Most effective pixels 2592(H) x 1944(V)
Pixel Size 2.2µm x 2.2µm
Frame 30 fps
Focus type Fixed focus
Interface type USB2.0
Adjustable Parameter Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

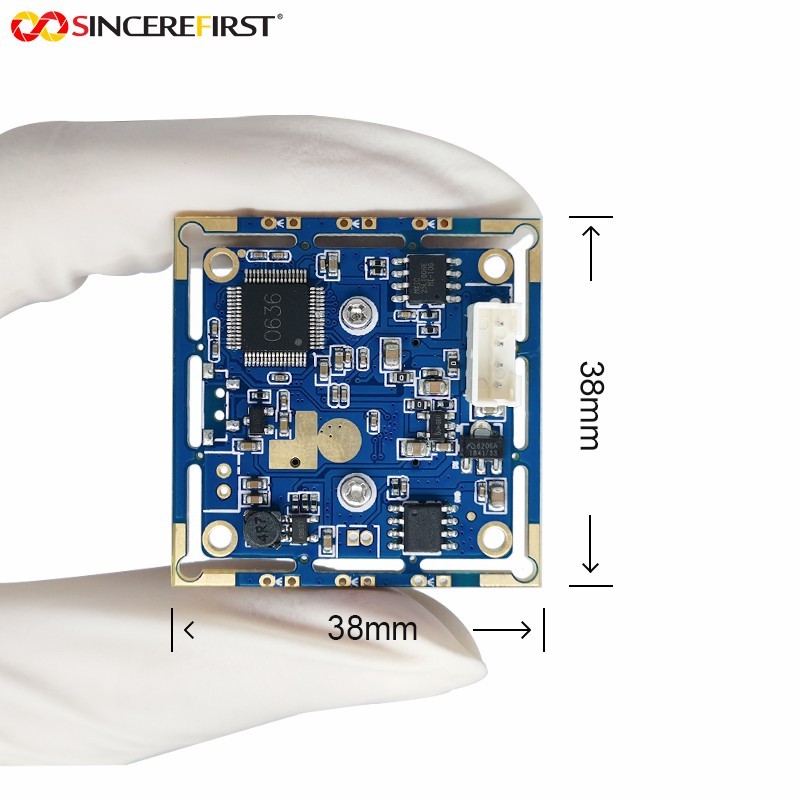

Dimension 38mm*38mm
Storage Temperature -20°C to 70°C

Description

SINCERE FIRST 5MP USB2.0 camera module is based on a 1/2.5-inch MI5100 CMOS sensor, which provides best-in-class low-light performance and image quality, it combines with the pixel size of 1.4 µm x 1.4 µm, and results in the 5.0 Megapixel 2592H x 1944V VGA image. The in-built Digital Signal Processor (DSP) that supports programmable controls like gain, and exposure, the DSP has been tuned to achieve excellent image performance. It is a plug-and-play camera UVC compliant camera module for Windows and Linux, it is a driver-free camera as well. Our off-the-shelf dimension is 38*38mm, and 32*32mm, any other required dimension can be customized.

Features

◆MI5100 camera sensor

◆5MP resolution with Micron MI5100 CMOS sensor
◆Fixed focus/Manully adjustable
◆High quality image, high quality microphones
◆UVC compliant, Plug & Play
◆Support USB2.0 OTG
◆Support Linux, Android, Mac and Windows, etc
◆Module size is 38MM*38MM

◆Fully customizable

Applicaitons

medical equipment
beauty instrument
scanning
educational equipment
face recognition
robotics
Machine vision

Drone
