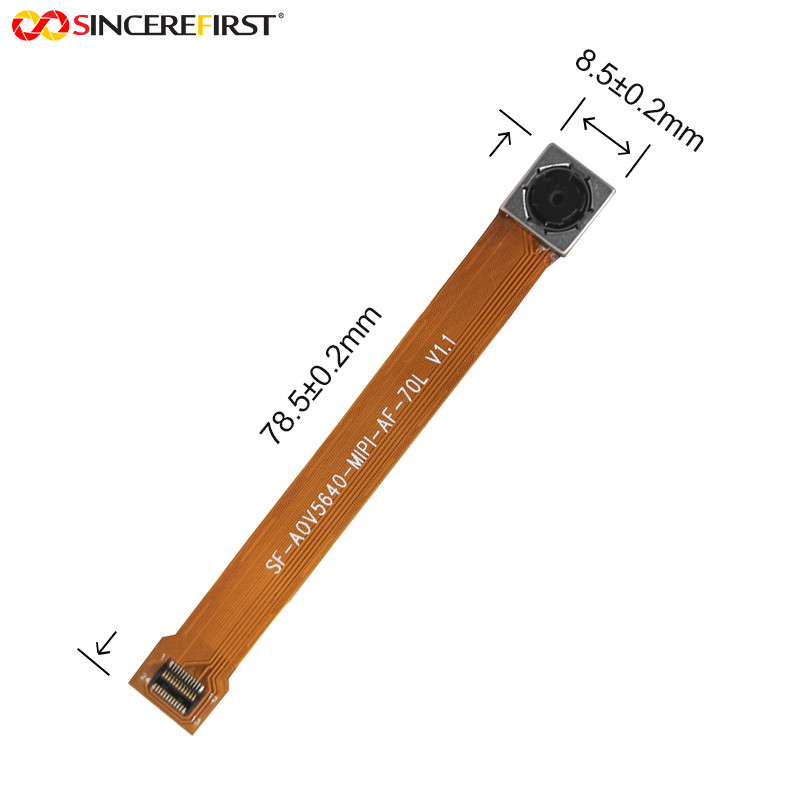

5mp FPC Auto Focus Raspberry Pi OV5640 MIPI Camera Sensor Module

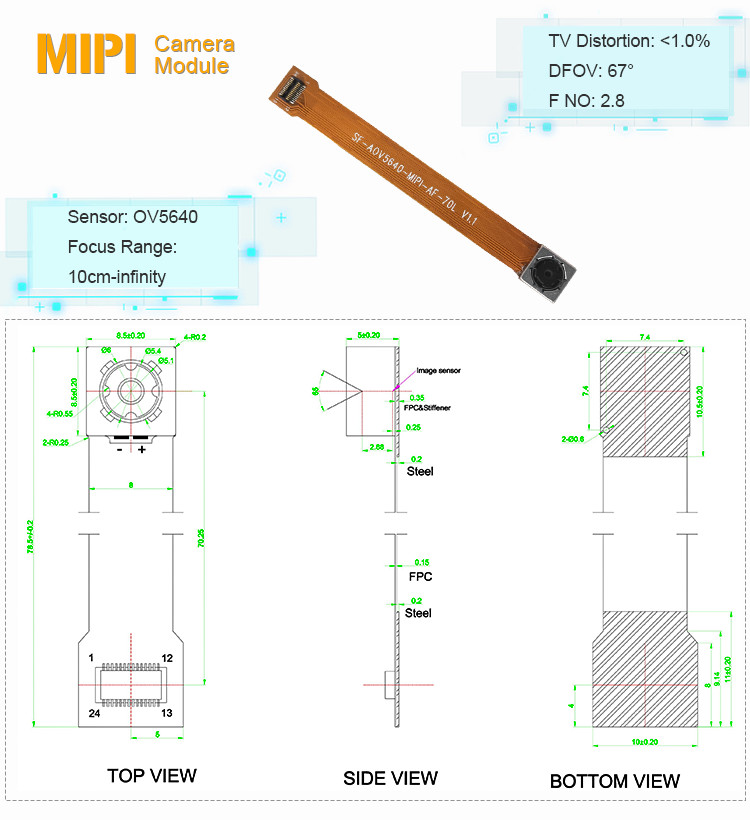

Specificaitons
| Model No. | SF-AOV5640-MIPI-AF-70L |
| Sensor | OV5640 |
| Pixel | 5MP |
| Focus Type | Auto Focus |
| Interface | MIPI CSI Interface |
| View Angle | 67° |
| Output Format | YUV422 |
| Obeject Distance | 10cm to Infinity |
| Compliance | FCC, RoHS |
| Warranty | 10 Years |
Description
The OV5640 MIPI camera module is a low-power, high-performance camera module that features a 5-megapixel OmniVision CMOS sensor. It is designed to be integrated into a wide range of applications, including mobile phones, tablets, and other portable devices.
The camera module supports a wide range of output interfaces, including MIPI-CSI, LVDS, and parallel. This makes it easy to integrate into a wide range of systems. It also supports a variety of image formats, including JPEG, BMP, PNG, and RAW.
The OV5640 MIPI camera module features a range of advanced features that help to ensure high image quality. These include advanced image processing algorithms, automatic white balance, and automatic color correction. It also features a range of exposure control options, including automatic, manual, and program modes.
Features
◆Omnivision OV5640 Image Sensor with pixel size of 1.4µm
◆Auto Focus, Auto Exposure and Auto White Balance support
◆Normal Flip, Mirror and Rotate support
◆Image Area: 3673.6 µm x 2738.4 µm
◆Focus Distance: 10cm to Infinity
◆MIPI-CSI, Auto-focus OV5640 camera sensor module
◆Compact size
◆YUV video format
Advantage
In addition to its advanced features, the OV5640 MIPI camera module is also very compact and lightweight. This makes it ideal for integration into portable devices where space and weight are at a premium.
Overall, the OV5640 MIPI camera module is an excellent choice for those looking to add high-quality camera functionality to their portable devices.

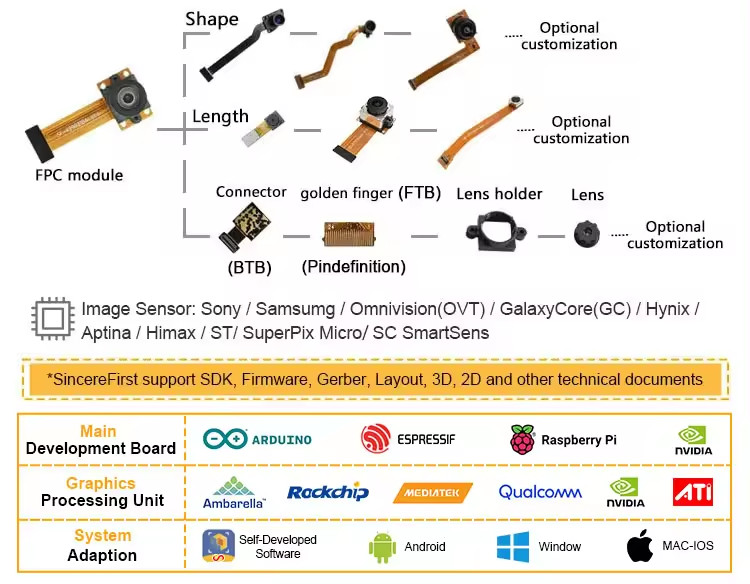

Customized Service
We can customize FPC length, module shape, module head size, lens holder, imaging direction, pinout, connector, VCM, lens, firmware, etc.
Why Choose US?

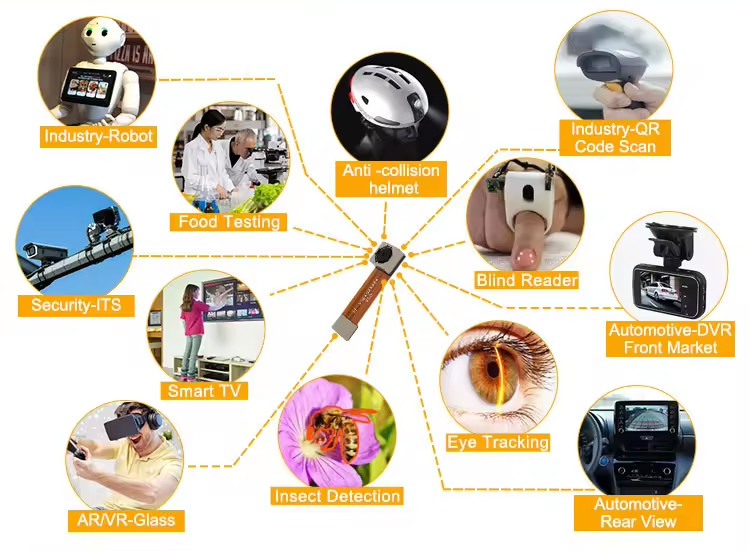

Applicaitons
Medical Devices, Tablets, Biometrics(Iris Scan) ,Low Vision, Electronic Microscope, Surveillance, Ocr Readers, Document Scanners, Inspection Cameras, Lab Equipment etc...
Customized Process
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
