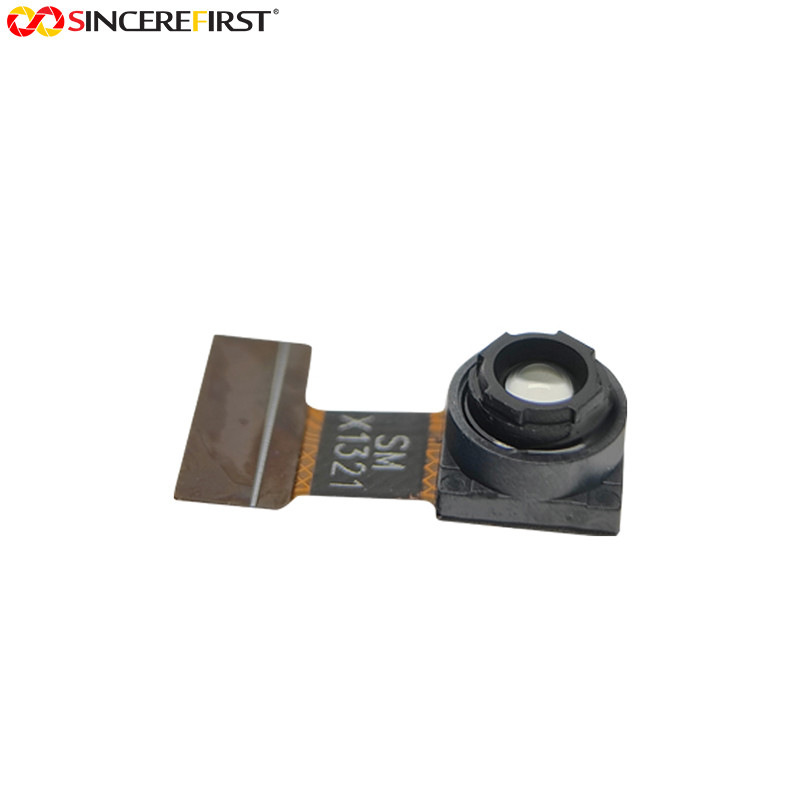

2mp Sony IMX132 Sensor Image Small Iris Mipi Module CMOS Camera
Specificaitons
| Chip Type | IMX132 |
| Megapixel | 2MP |
| Sensor Size | 1/6.95Inch |
| View Angle | 34.63° |
| Focus Type | Fixed Focus |
| Sensor | CMOS |
| Function | Iris Camera Module, Infrared Camera Module, Fixed Focus |
| Interface | MIPI |
| Distortion | ＜1.5% |
| Shipping By | DHLUPSFedexEMS |
Description
The IMX132TQH5-C is a diagonal 2.59mm(Type 1/6.95)back-illuminated type CMOS image sensor with a square pixel array and approx.2.4M effective pixels.Adoption of colun parallel A/D converter realized high-speed processing and changing fundamental structure to back-illuminated type enhanced imaging characteristics including sensitivity and low noise.R.G.and B piament primary color mosaic filter is emproved.Hiah sensitivity. low dark current features are achieved.It equips an electronic shutter with variable integration time. It operates with three power supply voltages:analog 2.7 Vdigital 1.2 V and 1.8 V for inputloutput interface and achieves low power consumption.
Features
Back-illuminated CMOS image sensor "Exmor R"
2-wire serial communication circuit on chip
CSI2 serial data output(selection of 1 Lane/2 Lane)on chip
Timing generator, H and V driver circuits on chip
CDS/PGA on chip
10-bit A/D converter on chip
Automatic optical black(OB)clamp circuit on chip
PLL on chip (rectangular wave/sine wave)
High sensitivity, low dark currentno smearexcellent anti-blooming characteristics
Variable-speed shutter function (Minimum unitOne horizontal sync signal period)
RG,B primary color pigment mosaic filters on chip
Supports external mechanical shutter
Xenon/LED Flash control function
Max. 58.88 frame/s in all-pixel scan mode
Pixel rate: 162.0 MHz(all pixels, 2 Lane, 30 frame/s)
Supports 720/60p, 1080/30p, 1080/60p drive*NOTE
Up/down and/or right/left inversion function
Pixel subsampling readout function
Image cutout function
Power-on reset function
Power-on sequence free
Applications
The IMX132 is commonly used in surveillance cameras, automotive applications, and other devices that require high-quality imaging in low light conditions.

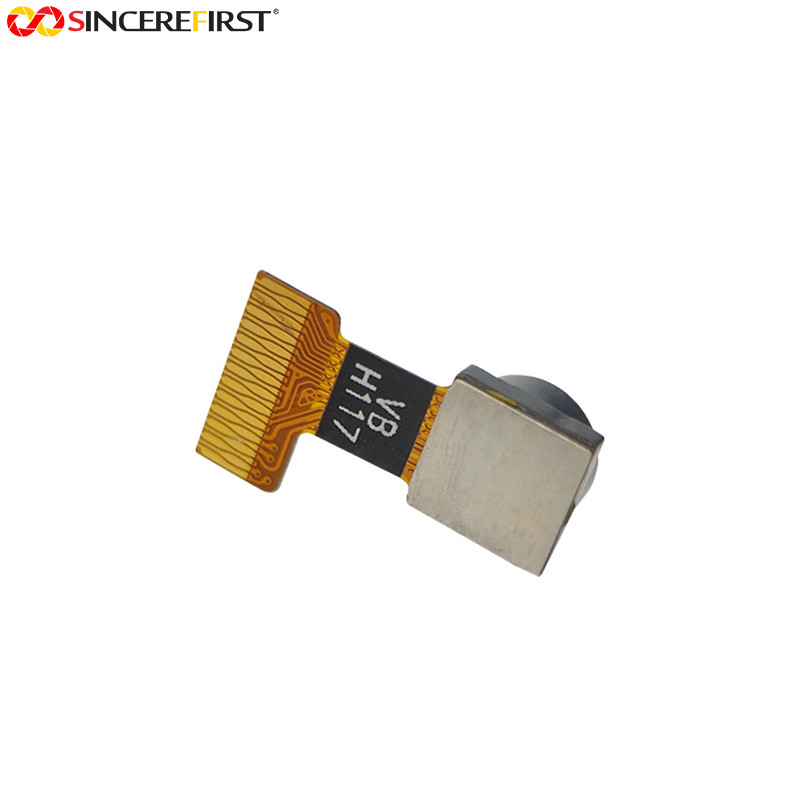

Specificaitons
| Origin | China |
| Focus Type | Fixed Focus |
| Pixel | 2MP |
| Sensor Size | 1/4 |
| Focus | FF |
| CMOS Sensor | GC2145 |
| View Angle | 64° |
| Pixel Array | 1616 x 1232 |
| Place of Origin | Guangdong, China |
| Production Capacity | 350000 PCS Per Month |
Description
GC2145 is a high quaity 2 Mega CMOS image sensor, for mobile phone camera applications and digitalcamera products .GC2145 incorporates a1616Vx1232H active pixel array, on-chip 10-bit ADC, and image signal processor. According to different light condi ions, The on-chip ISP provides avery smooth AE(Auto Exposure) and accurate AWB(Auto WhiteBalance) control.Besides, interpolation, de-noise, and color correction, gamma correction are supported, which can revert the real scene better. The sensor also provides various data formats, such as Bayer RGB, RGB 565,YCbCr4:2:2.All sensor parameters and features are controlled through a standard 2-wire serial interface. Inte mal master clock can be generated by on-chip Phase Lock Loop(PLL) oscillator.
Features
Standard optical format of 1/5inch
Various output formats:YCbCr 4:2: 2, RGB 565, Raw Bayer
Power supply requirement:AVDD:2.7~3.0V
DVDD:1.7~1.9V
IOVDD:1.7~3.0V
PLL support
Windowing support
MIPI interface support:Singlelane/Doublelane(CSI-2V1.0/PHY-1.0)
Horizontal/Vertical mirror
Image processing module
Package:CSP/wafer
Applications
laptops
all-in-one computers
advertising machines
high-speed cameras
face recognition teaching equipment
monitoring equipment
