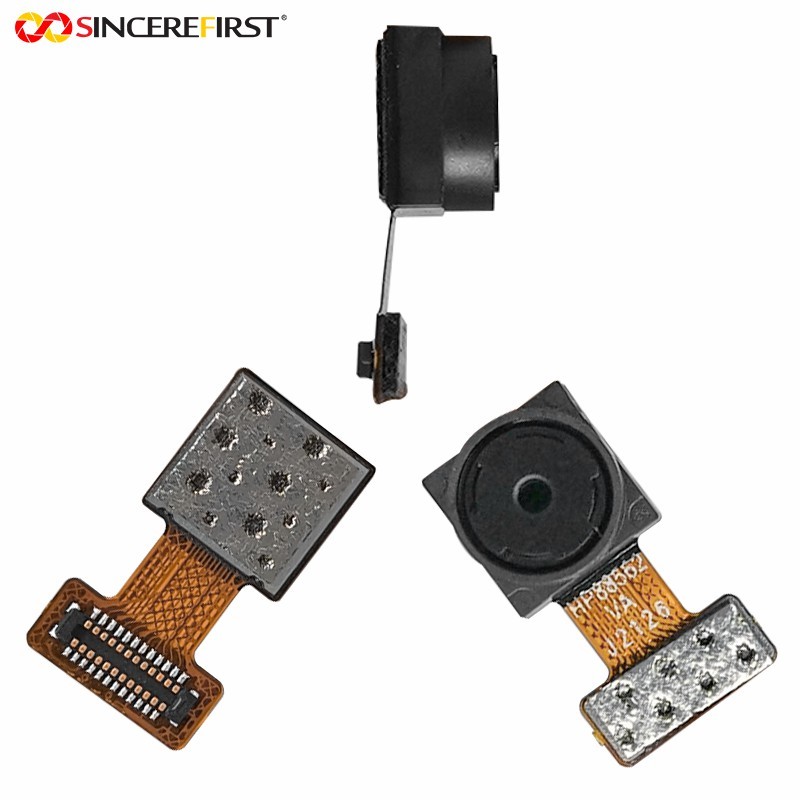

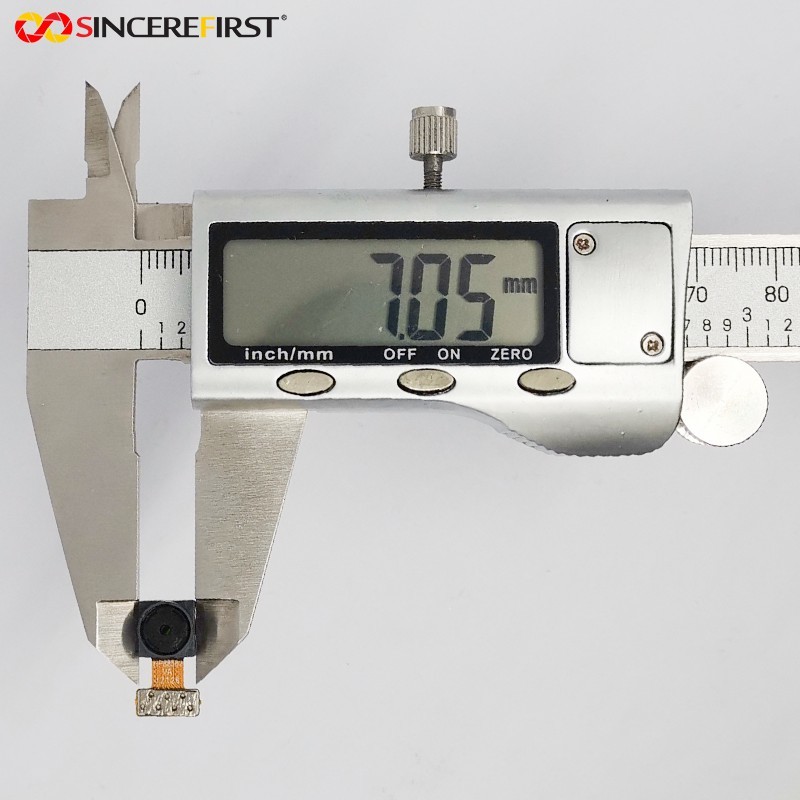

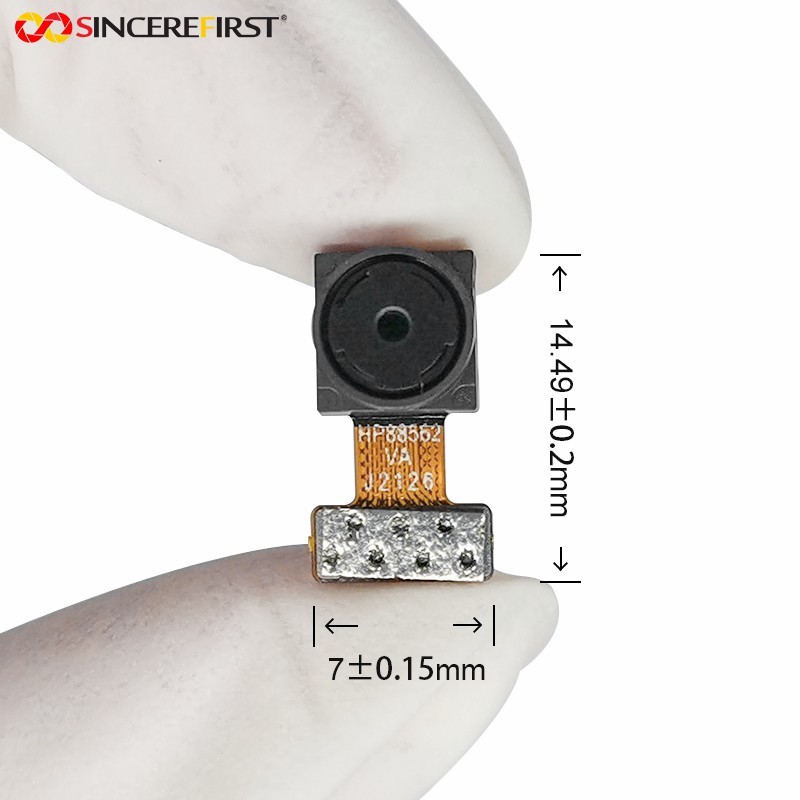

8mp Fixed Focus Ov8856 Camera Module Small CMOS Sensor 1.12 Umx 1.12 Um

Guangzhou Sincere Information Technology Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

8mp Fixed Focus Ov8856 Camera Module Small CMOS Sensor 1.12 Umx 1.12 Um

Brand Name : SINCERE FIRST

Model Number : SF-HP88562-A0

Certification : CE, FCC, RoHS, REACH, ISO

Place of Origin : Guangdong , China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Sensor : OV8856

Sensor Size : 1/4inch

F Number : 2.0

Array Size : 3624*2448

View Angle : 76.9°

Lens : SPY862E-2 (4P)

Focus Range : 33cm~51cm(FD=40cm)

EFL : 3.81

Distortion : <1.5%

Pixel Size : 1.12 μm x 1.12 μm

Contact Now

8mp Fixed Focus Ov8856 Camera Module Small CMOS Sensor 1.12 Umx 1.12 Um

Specificaitons

Sensor ‎OV8856
Active Array Size 3264x2448
Lens Size 1/4"
pixel size 1.12 umx 1.12 um
Image Area 3678.336um x 2767.68um
FOV 76.9°
Distortion <1.5%
EFL 3.81
Focus Range 33cm~51cm
EFL 3.81

Description

OmniVision's 0V8856 is a new 1/4-inch 8 megapixel PureCel sensor designed for front-andrear-facing camera applicationsin mainstream mobile devices.Built on advanced 1.12-micron pixel architecturethe
extremely compact 0V8856offersindustry-leading image quality and improved performance when compared with previous-generation 8-megapixelimage sensors.
The 1/4-inch 0V8856 leverages OmniVision's PureCel pixel architecture to capture full-resolution 8-megapixel images and video at 30 frames per second fps),and1080p high-definition(HDvideo at 60fps. The power-efficient OV8856 sensor also supports interlaced high dynamic range(iHDR) for clear images and video in high-and low-light conditions.Using a high speed four-lane MIPl interface,the 0V8855 can output full-resolution, 8-megapixel 30 fps video over two MIPI lanes without requiring any data compression.

The 0V8856 is one of the smallest 8-megapixel sensors on the market, and is approximately 15 percent smaller than OmniVision's previous-generation 0V8858 image sensor. The V8856 can fit into a 6.5 mmx 6.5 mm fixed-focus module with a z-height of approximately 4 mm.

The 0V8855, a variation of the 0V8856 that supports phase detection autofocus for extremely fastand
accurate focusing,is also available.

Features

◆1.12pmx1.12um pixel
◆optical size of 1/4"
◆32.9°CRAfor<5mm Z-height
◆programmable controls for frame rate.
mirror and flip.cropping.and windowing
◆supports images sizes:
8MP(4:33264x2448
8MP(16:9.3264x1836).
EIS1080p(2112x1188)
1080p(1920x1080).
EIS 720p(1408x792),and more
◆8MP at 30 fps
(720Mbps/4-lane or 1.44Gbps/2-lane)
◆two on-chip phase lock loops(PLLs)
◆two-wire serial bus control(SCCB)
◆8k bits of embeddedone-time
programmable(OTP) memory
◆image quality control: defect pixel
correction.automatic black level
calibration, lens shading correction
and alternate row HDR

Applicaitons

PC Multimedia
Tablets

Internet of Things End-to-End Solution

VR High End Camera Solutions

8mp Fixed Focus Ov8856 Camera Module Small CMOS Sensor 1.12 Umx 1.12 Um8mp Fixed Focus Ov8856 Camera Module Small CMOS Sensor 1.12 Umx 1.12 Um8mp Fixed Focus Ov8856 Camera Module Small CMOS Sensor 1.12 Umx 1.12 Um
