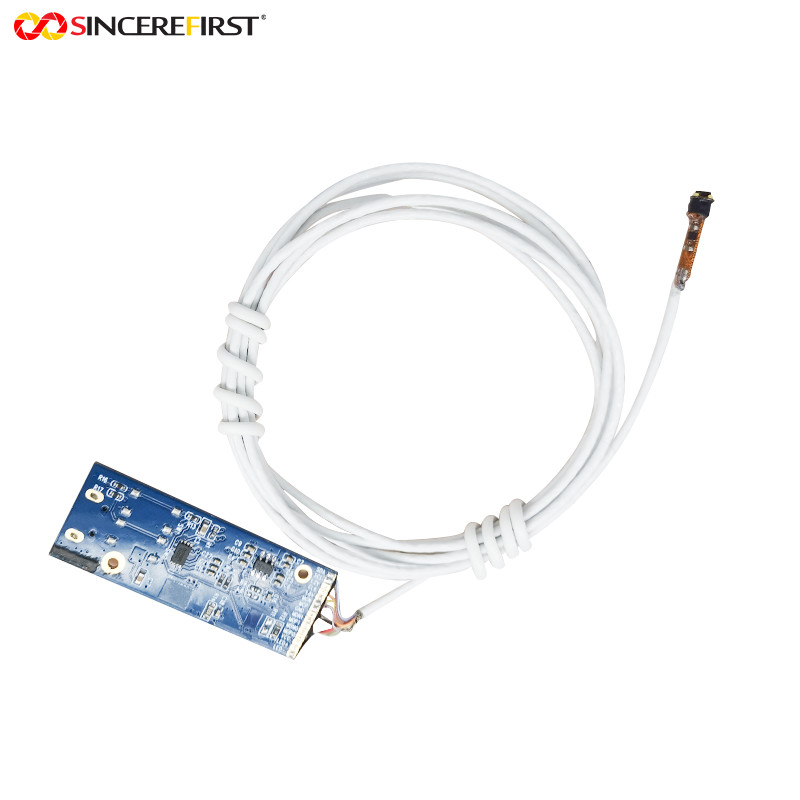

Mini 3.3mm 1000P Oral Endoscope Camera Module Wide Angle 140 Degree

Brand Name : SINCERE FIRST

Model Number : SF-C1019USB-1000P-D3.3-D140-PLUS

Place of Origin : Guangdong , China

Certification : CE, FCC, RoHS, REACH, ISO

MOQ : 5pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Output : USB2.0 UVC

Format : YUV&MJPEG

Resolution : 1000p Max 60fps

Connector : Mini USB-5P

LED : 0201 White Led

DSP : USB2.0 UVC

Focusing Range : 10-100mm

Focal Length : 0.75mm

FOV(D) : 140°

TV Distortion : ＜-30%

Contact Now

Product Description:

The ES101 endoscope camera module has a maximum resolution of 1000Hx1000V and adopts a high-performance 1.4um BSI pixel design. ES101 adopts an innovative architecture to support high frame rate readout. The sensor supports fullframe mode, skip mode, binning mode, windowmode and other output formats, and is compatible with LVDS/MIPI+10bit/8bit image output modes to meet more solution requirements.

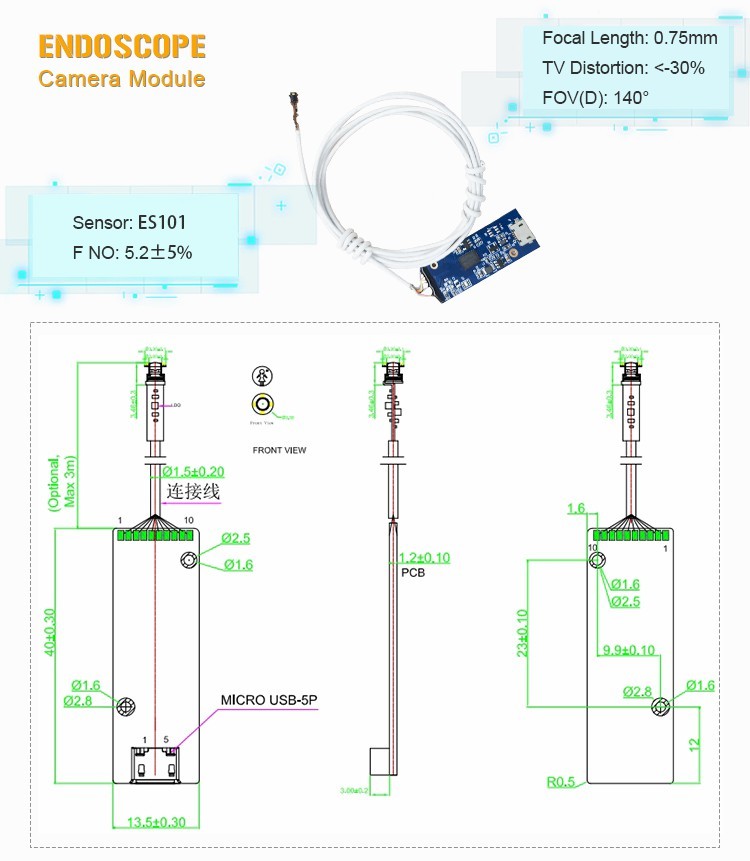

Technical Parameters:

Technical Parameter Value
Product Name Medical Endoscope Camera Module
Diameter 3.3mm
Features Mini Endoscope Camera Module
Sensor ES101
Led 0201 White Led
DSP USB2.0 UVC
Focusing Range 10-100mm
Focal Length 0.75mm
FOV(D) 140°
F Number 5.2±5%

Applications:

The endoscope camera module is a versatile device that can be used in a variety of medical applications, including oral examinations, gastroscopy, bronchoscopy, laparoscopy, and arthroscopy. It can also be used in veterinary medicine to examine animals. The camera module's small size and flexible cable make it ideal for use in endoscopes, allowing doctors and veterinarians to easily perform minimally invasive surgeries.
