Micro 0.9mm Endoscope Camera Module For Medical Industrial Application

Name: Micro 09mm Endoscope Camera Module For Medical Industrial Application
Brand: SINCERE FIRST
Price: 1 USD

Micro 0.9mm Endoscope Camera Module For Medical Industrial Application Manufactures

Brand Name : SINCERE FIRST

Model Number : SF-TA10USB-D0.9

Place of Origin : Guangdong , China

Certification : CE, FCC, RoHS, REACH, ISO

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Image Sensor : OCHTA10

Pixel Size : 400(H)*400(V)

View Angle : 120°±6°

Interface Type : Type-C

Features : Smallest

Applications : Medical

Diameter : 0.9mm

Product Name : Endoscope Camera Module

Warranty : 10 Years

Replacement : 1 Year

Contact Now

Micro 0.9mm Endoscope Camera Module For Medical Industrial Application

Product Description:

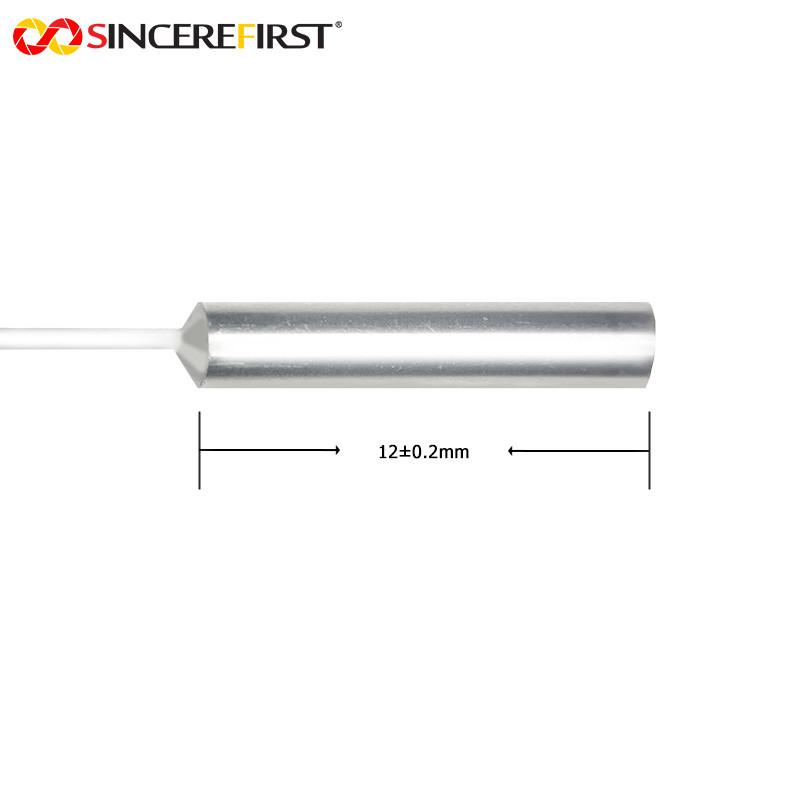

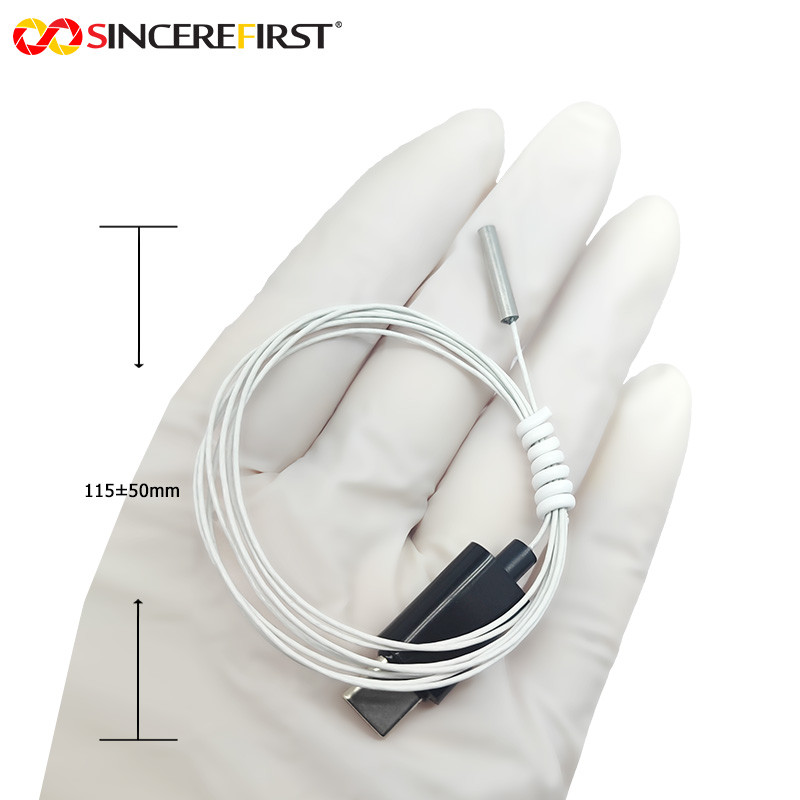

This MINI endoscope camera module uses a CMOS OCHTA10 sensor with a resolution of 400*400. The endoscope camera module has an outer diameter of 0.9mm without LEDs. The FOV (diagonal) is 120 degrees and the depth of field is 3-100 mm.

Technical Parameters:

Pixel Size	1.4umX1.4um
USB Protocol	USB2.0HS/FS
Lens Size	1/9 Inch
Maximum Effective Pixel	1280(H)X720(V)
Sensitivity	600mV/Lux-sec
Output Format	Standard UVC
Sensor	CMOS Sensor
Image Region	1972μm X 1008μm
Interface Type	USB2.0 High Speed
Output Image Format	YUV2(YUYV)/ MJPEG

Applications:

Pipeline Inspection

Medical Equipment

Industrial Cameras

Micro 0.9mm Endoscope Camera Module For Medical Industrial Application

Product Tags:

Industrial Application Endoscope Camera Module

Micro Endoscope Camera Module

0.9mm Endoscope Camera Module
