High-Speed USB2.0 Interface BF2013 endoscope Camera module
Product Description:
- This is an endoscope camera module equipped with the BF2013CMOS chip, supporting an image output of 30 FPS at a resolution of 653×493. The module size without the casing is only 2mm, and it uses a USB2.0 interface for output. It is also equipped with 6 LED lights. It is mainly applied in scenarios such as industrial inspection, pipeline maintenance, and medical diagnosis.
Features:

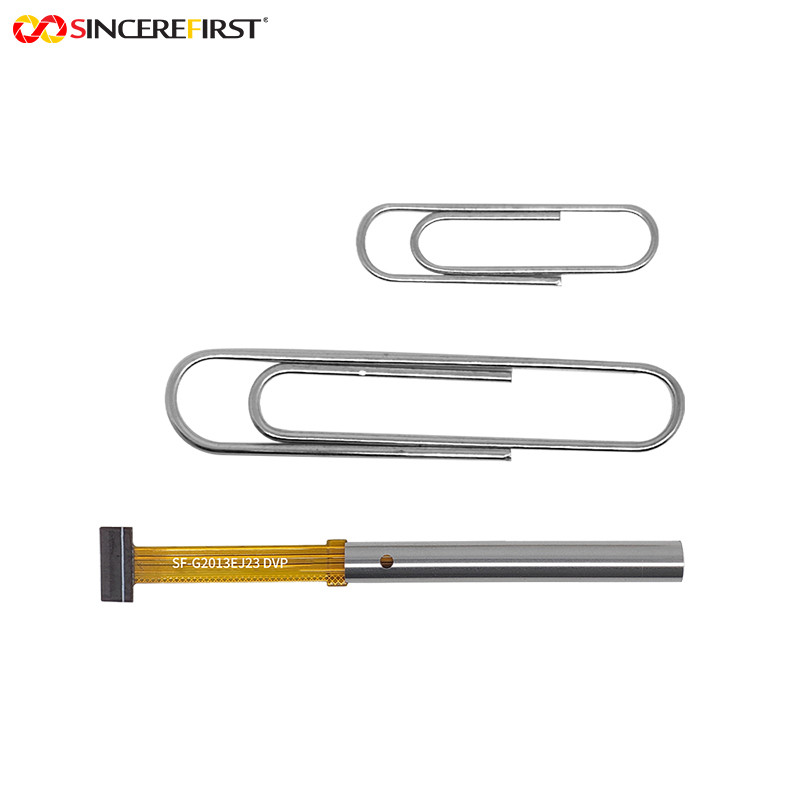

1. 2-millimeter ultra-small module size
2. Supports stable output of 653* 493p@30FPS HD images
3. Output via USB2.0 interface, compatible with multiple operating systems
4. Six adjustable LED fill lights
Technical Parameters:
| Product Name | USB2.0 Endoscope Camera Module |
| Sensor | BF2013 |
| Focus Range | 15-50mm |
| FOV(D) | D45° |
| Max Image Circle | 4.8mm |
| Format | YUV&MJPG |
| Features | ６Lanes Endoscope Camera Module |
| Interface | USB Interface |
| Warranty | 10 Years |
| F. NO | 2.8 |
Applications:
Medical Field: For internal inspection of medical equipment, such as surgical instruments, maintenance and repair of medical equipment.
Industrial Machinery: For internal inspection and maintenance of factory equipment, such as troubleshooting inside pipes and machines.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
About US:
Cooperative Brands & Customers:
Why Chooes US:

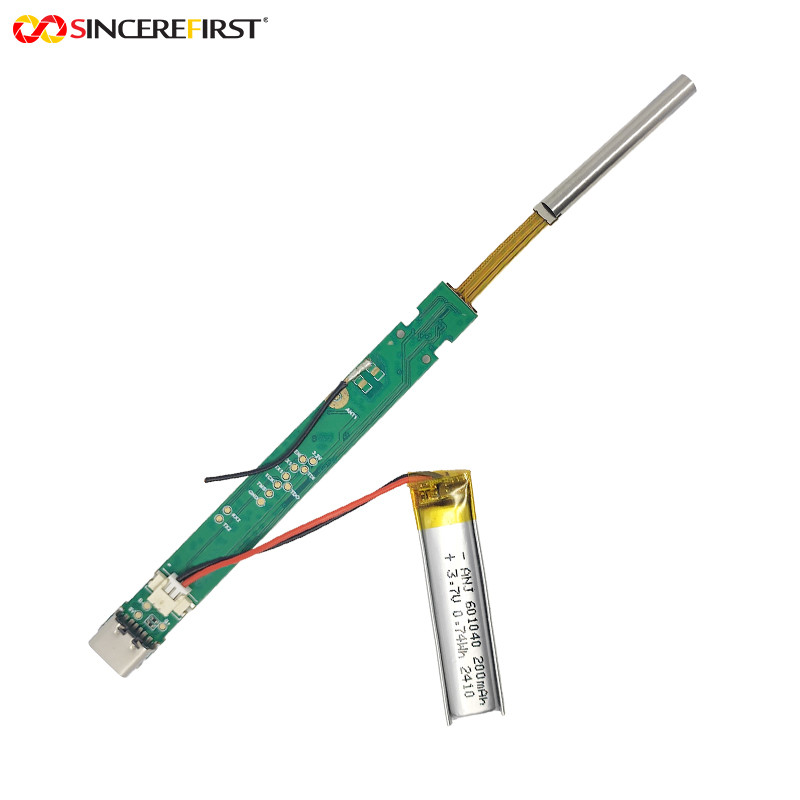

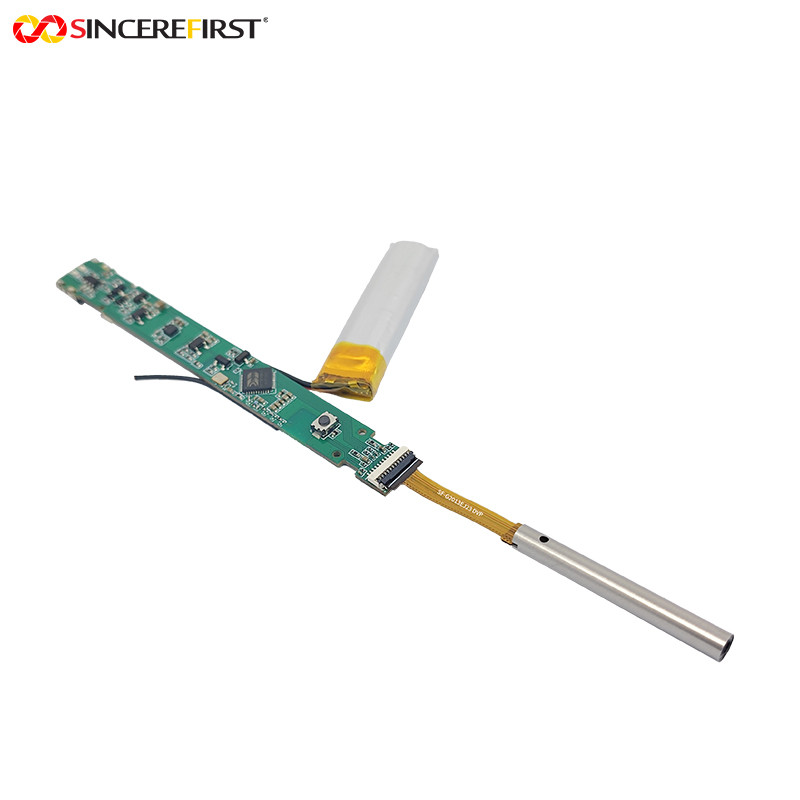

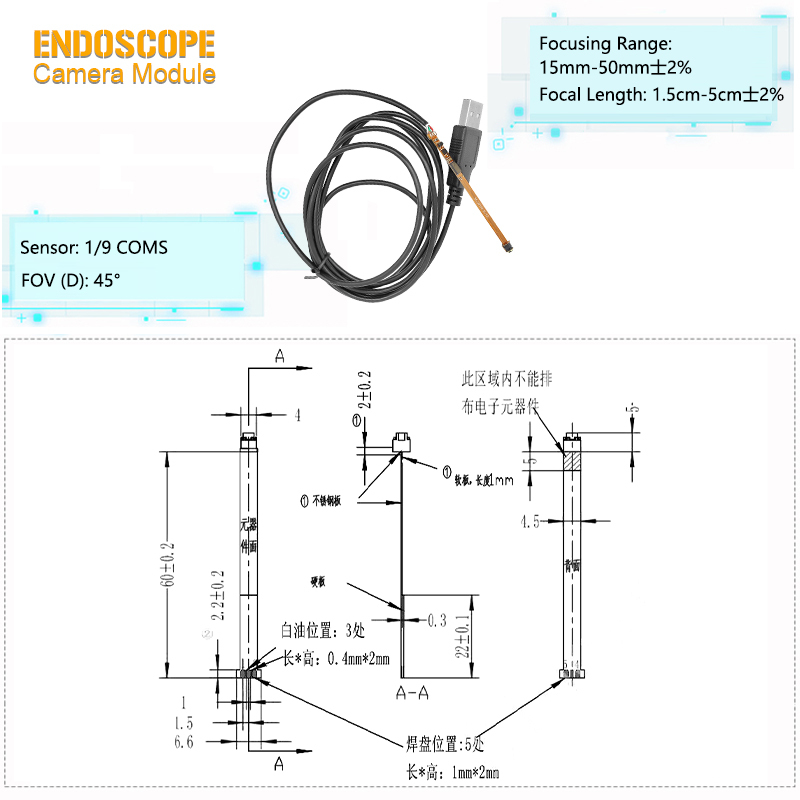

Detail Pictures:
