OV9732 Sensor 1MP 720P Mini USB 2.0 High-Speed Camera Module With Mic
Product Description:
The USB camera module with a microphone features 1MP resolution and uses a USB 2.0 interface. It supports synchronous output of 1280×720P@30FPS video and audio. With a compact module size of only 25mm × 25mm, it is suitable for installation in most miniature devices and confined spaces.
Features:
1. Small-Size Module: The module size of 25 mm × 25 mm makes it suitable for installation in various micro devices and narrow scenarios.
2. Audio-Video Synchronization: The OV9732 CMOS chip with 1 MP pixel, combined with a microphone, can synchronously output high-definition (1280×720p@30fps) images and audio.
3.High-Speed Transmission: The USB 2.0 interface ensures stable and high-speed transmission of audio and video, preventing any desynchronization of audio and video.

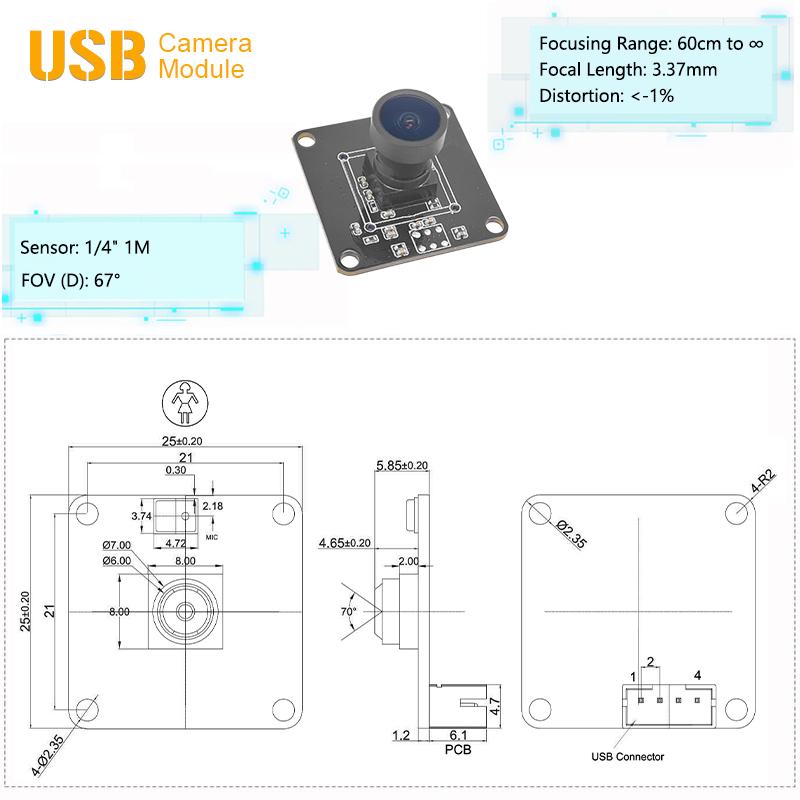

Technical Parameters:
| Product Name | USB Camera Module With Mic |
| Sensor | OV9732 |
| Pixel | 1MP |
| View Angle | D67° |
| Focusing Range | 60cm-∞ |
| Distortion | <-1% |
| Lens Size | 1/4nch |
| Focal Length | 3.37mm |
| Interface Type | USB |
| Brand Name | SINEREFIRST |
Applications:
In the field of smart home, the HM2131 USB camera module is used in smart refrigerators and smart freezers, etc.
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
